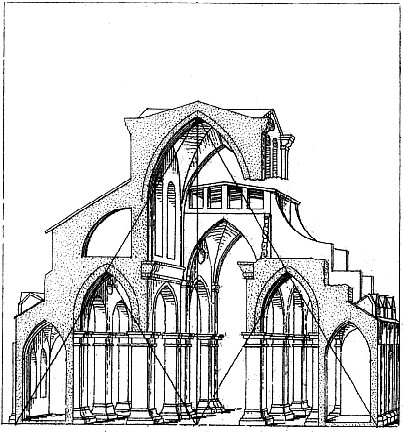

Cathedral of Bologna, constructed on the same [eqilateral triangle] principle, according to the original design for this church, but when it was completed in the fifteenth century the height of the nave was diminished as shown.
Seroux

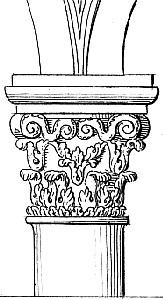

Capital from the nave of the Cathedral of Modena.
Seroux


Plan of one of the pillars of the nave of the Cathedral of Modena; twelfth century. This sort of pillar, square on plan, with half a column on each face, may be seen in several buildings, and is a feature of the Gothic style of this period.
Plan of the Confession under the choir of the Cathedral of Modena.
Ground plan of the Cathedral of Modena; of the twelfth century.
Seroux

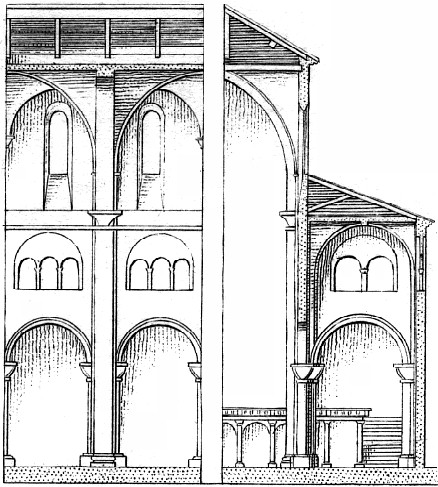

Longitudinal section of the Cathedral at Modena.
Longitudinal section of the Cathedral of Modena; in the twelfth century.
Seroux

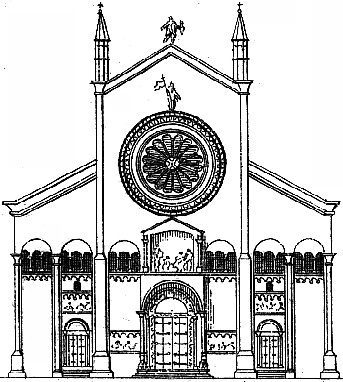

Façade of the Cathedral of Modena.
Seroux



Mixture of two kinds of arches from the Cathedral of Modena; the longitudinal section shows only semicircular arches, in the transverse section is seen the pointed arch of the nave, introduced at the time of a restoration in the eleventh or twelfth centuries.
Seroux

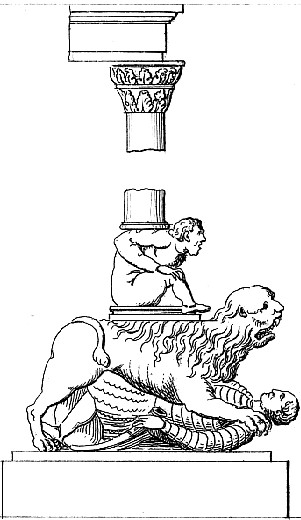

Column from the Cathedral of Modena.
Seroux

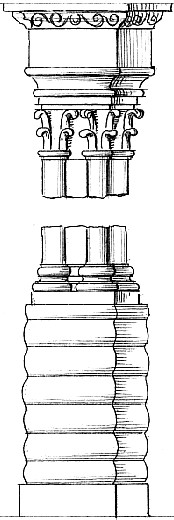

Base, capital, and architrave from one of the columns of the principal door of the Cathedral of Modena.
Seroux

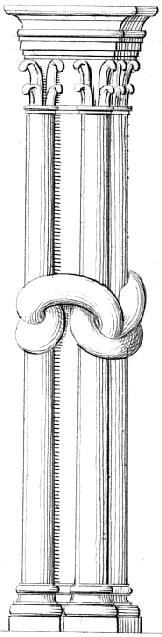

Other bases, capitals, and entablatures, from the same.
Seroux

««««

»»»»
