Serlio on Bramante's Tempietto

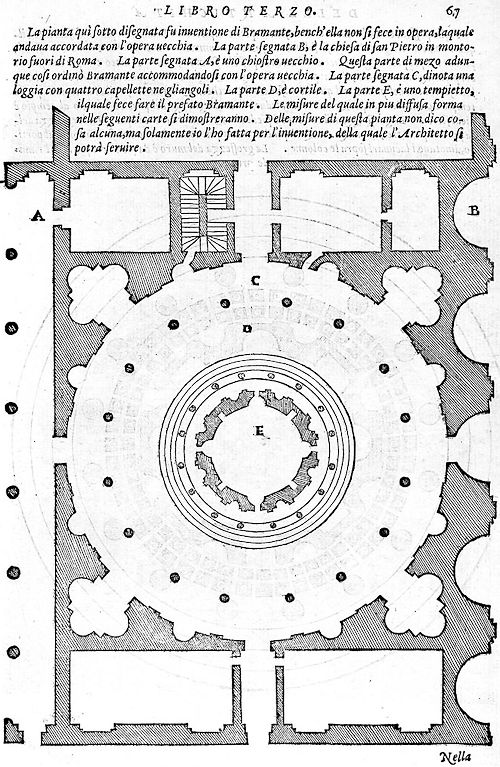

This ground set under this, is also an intention of Bramante, though it was never made, which agreed with the old work: that part which is marked with B is S. Peter's Church in Montorio without Rome; and that part marked with A is an old cloister, but that part in the middle, Bramante ordered, thereby to help himself with the old work; the part marked C signifies a gallery in the corners. The place B stands under the apse; the part marked E is a little temple, which the said Bramante made. . .I have said nothing touching the measure of the ground, but I have shown it here only for the invention.

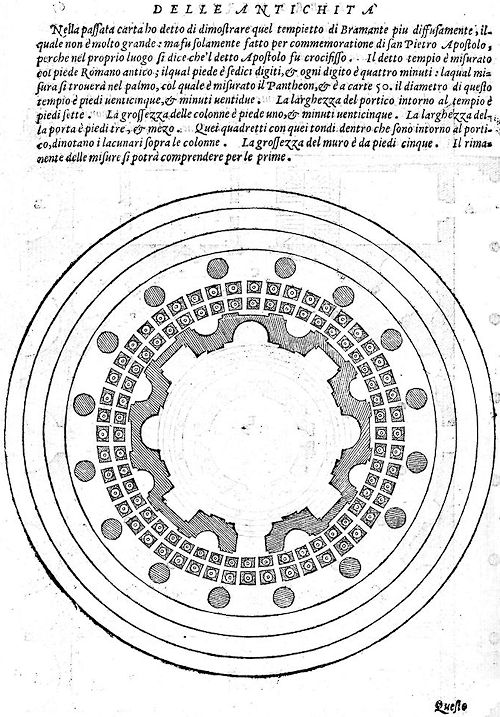

In the last side I promised to show Bramante;s Temple in greater form, which is not very great, but was only made in remenbrance od S. Peter the Apostle, for it is said he was crucified in that place; the said Temple is to be measured by the old Roman foot...

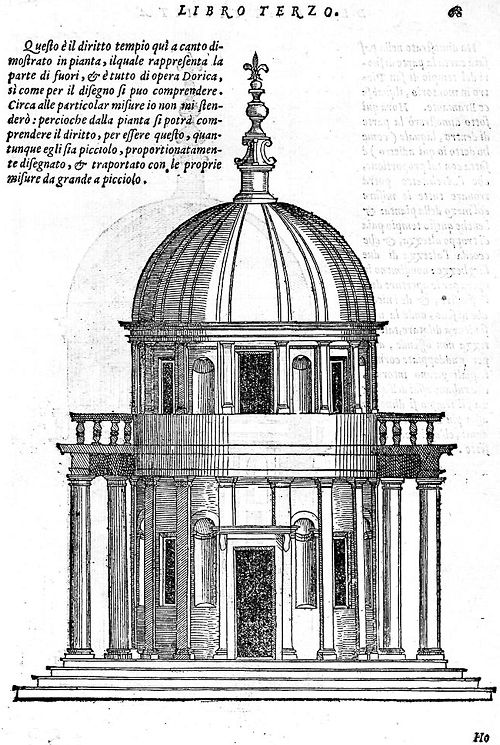

This is the said Temple standing up, which shows the one half without and the one half within...


««««

»»»»
