Vincenzo Fasolo, "The Campo Marzio of G. B. Piranesi".
2691a
1956
| |
new insights - key to the language of plans
1996.07.15
This note concerns my new insight into Piranesi's Campo Marzio. Eessentially I think I hit upon a substantial key concerning the language of the plans within the Campo Marzio. In retrospect, I think it was an understanding of Piranesi's plan language that I was interested in finding out from the very beginning--at least since I learned CAD.
The key to the language of plan forms starts with the long 'spiritual' axis of Mars and the tiny temple/shrine to the union of Mars and Rhea Silvia. I will not here go into the whole story of the long axis except to say that the Mars/Rhea Silvia shrine at the very end of the axis is the very basis of all the Piranesi plan forms. The plan of the shrine itself depicts, in simple planimetric form, the union of the male sex organ with the female sex organ. The plan is plain and simple, and where it not for its small size, would also be perceived as vulgar and blunt. Yet there is an essential beauty in its fertile simplicity--the notion of elementary plan forms is enhanced a thousand fold by the symbolism of outside vs. inside--gives it the power to spawn every other plan formation delineated.
The power and significance of the small shrine plan comes to the fore after an analysis of the second significant axis of the Campo Marzio--the Equiria. This axis represents the war/military aspect of Mars, and when compared with the long axis running through the altar to Mars, the Equiria, the race course, can be clearly considered the mundane axis (as opposed to the spiritual or sacred axis). The military character of the axis is quickly reinforced by the military offices and the military parade grounds that lie to the northern end of the Equiria. The fact that the Equiria is a horse race course also reinforces the mundane/military character of the axis, and this mundane aspect is most clearly manifest with the dirt road reality of the axis itself. (There may be the opportunity to call out a sacred vs. profane contrast between the two axes.)
Seeing how the first axis ends in sex, I was curious to see if the Equiria axis also ends in sex. While there is no building plan that explicitly depicts the co-joining of sexual organs, the north end of the axis has a pair of simple buildings--Vivaria Fulvii and Cochlearum Hirpini--made up of very few contiguous elements. I think this type of plan is the next step in the hierarchy after the sex temple. It is almost as if the sex temple starts something that quickly multiplies and mutates in the process. These two plans next to each other demonstrate the high order of symbolism in the first.
From the second order of plan, the next step up in the hierarchy is best exemplified by the sw Gymnasium on the Tiber and the Villa Publicus where the contiguous elements are still few yet numerously repeated, however there is a substantial addition of articulation in the individual contiguous pieces, especially in the carving out of space in the form of niches and thus heightening the issues of outside/inside, solid/void, figure/ground. This third type of plan formation is much more strongly related to the sex temple, yet the lesson of the second type of plan, the gemmation of a few parts, is a vital step in the evolutionary development of the plans. I wonder if I could here call it an embryonic development of the plan configuration. I also wonder if the second order of plan formation is to be considered profane vs. the sacred union of sex?
| |
hierarchy of plans
1996.07.16
There is the degree of hierarchy of the two three-sided series of sepulchers--Sepulchra adjacent the Porticus Neronianae and Sepulchra Libertorum et Servorum--where one is a more advanced/developed form of the other. These are closely related to the repetition of the Gymnasium but they also introduce a linear motif that has not yet been addressed. The linear repetition motif is also very evident in various porticus plans.
Tafuri text
1996.09.02
Porticus a S.P.Q.R. Amoenitati Dicata
1998.12.01

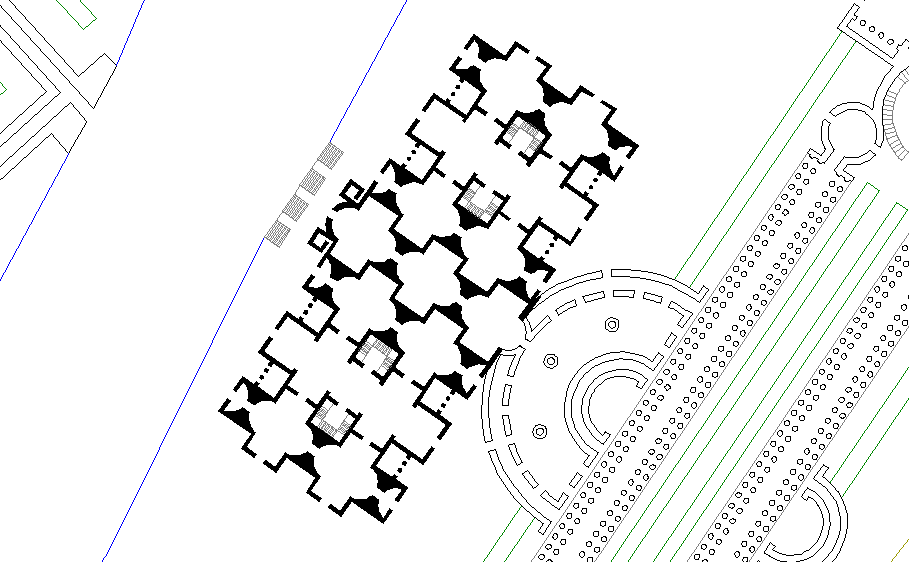

The central portion of the Porticus a S.P.Q.R. Amoenitati Dicata consists of two identical colonnades, each composed of two rows of double columns. These colonnades are open to their surroundings along their longitudinal elevations, and create a central open space that contains walkways among boxwoods. Along the primary axis, the colonnades are terminated by symmetric building compositions which each contain three distinct interior spaces (of which two are basilican) and paired sets of grand circular staircases persumably leading up to the roofs of the colonnades. Two semi-circular structures of unspecified purpose buttress the colonnades along the secondary axis, and the larger of these two structures connects the porticus to a Gymnasium.
|
